XE140RT Rough Terrain Scissor Lift

Mantall® XE140RT Rough Terrain Scissor Lift has a maximum working height of 14 meters and a load capacity of 345 kg. XE140RT has the characteristics of 30% gradeability, maximum traction speed of 4km/h, full-height driving, no emission and no noise. It is equipped with on-board diagnostic system, fault alarm device and strong power. XE140RT Rough Terrain Scissor Lift has excellent driving force and climbing ability for rough terrain.

Standard Features

  • Foldable guardrail
  • Diagnosis system
  • AC power to platform
  • 2 wheel drive
  • Tilt level sensor with an audible
  • alarm
  • Lowering alarm
  • Horn
  • Hour meter
  • Emergency pump

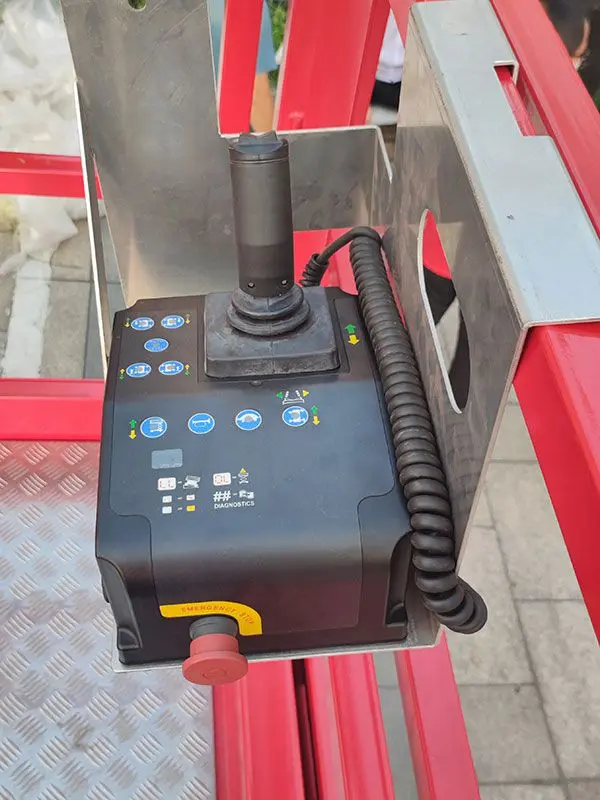

  • Proportional controls
  • Solid rough tire
  • Explosion-proof of the tubing
  • Safety Brackets
  • Dual flashing beacon

XE140RT Rough Terrain Scissor Lift Specifications
xe-rt

Specification Value
Max Working Height 14 m
Lifting Capacity 345 kg
Overall Width 1.76 m
Overall Length 2.67 m
Weight 4270 kg
Weight – with outriggers 4730 kg

Options

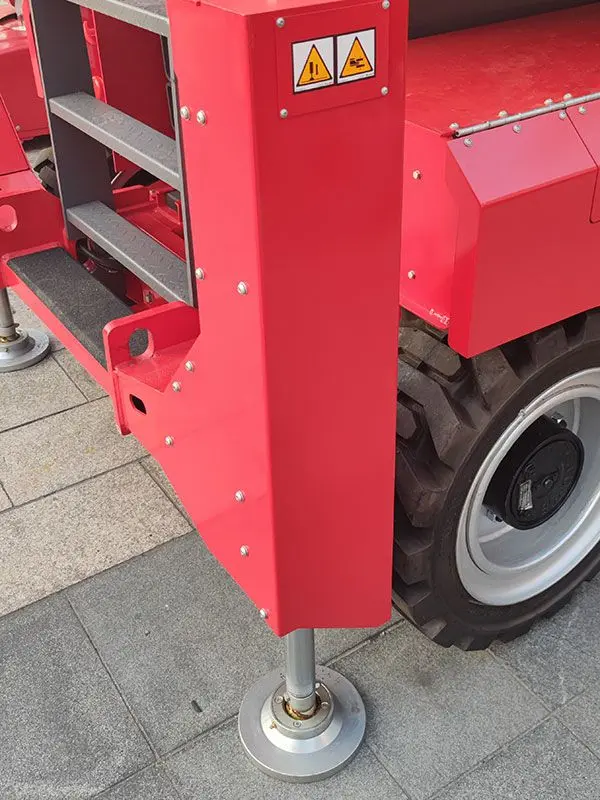

  • Automatic leveling hydraulic outriggers
  • Air line to platform
  • Lithium battery
  • Non-mark rough tire
  • Overload sensor
