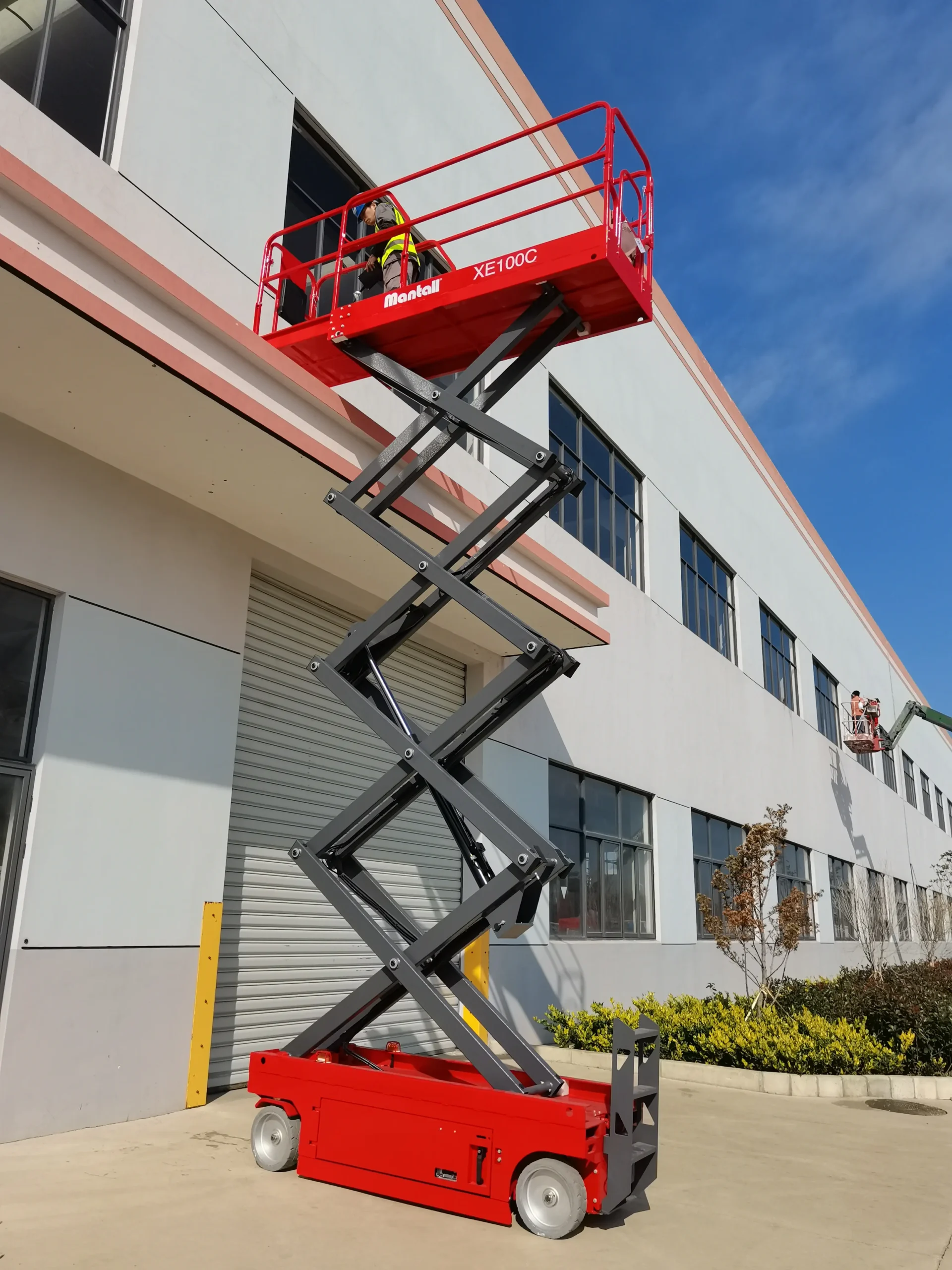

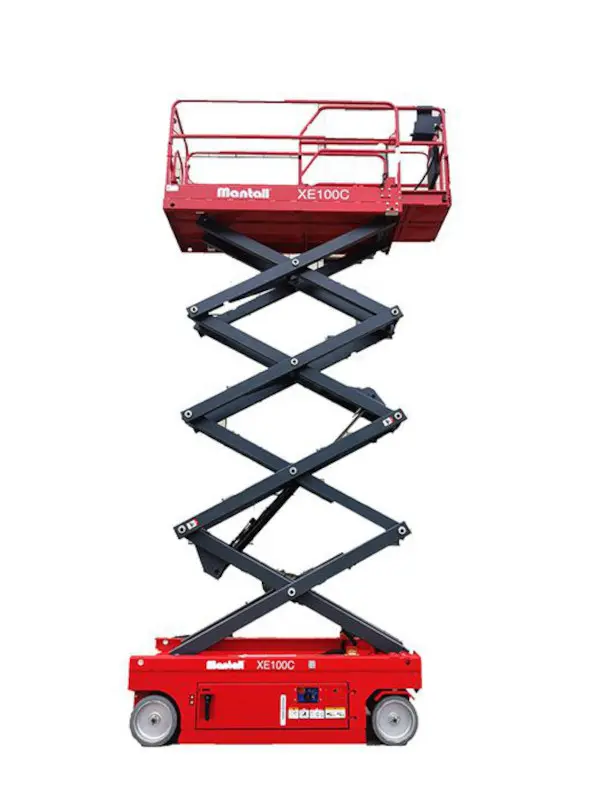

XE100C Scissor Lift

Mantall® XE100C Scissor Lift has a maximum working height of up to 10 meters and a maximum load capacity of 230 kg. XE100C is a compact, self-propelled scissor lift with features such as pothole protection, 0° turning radius, and 25% gradeability. XE100C Scissor Lift uses batteries as the power source, with low noise and no emission, and can be widely used in small indoor spaces.

Standard Features

  • Manual emergency lower system
  • Platform swing gate
  • Extended platform
  • Foldable platform
  • Multi-disc wet brake
  • Manual brake release
  • Pothole protection
  • Non-marking tires
  • AC power to platform
  • Tilt alarm
  • Buzzer
  • Safety brackets
  • Charging indicator
  • Forklift pockets
  • Diagnosis system
  • Maintenance free battery
  • Dual flashing beacon

XE100C Scissor Lift Specifications
xe-c

Specification Value
Max Working Height 10 m
Lifting Capacity 230 kg
Overall Width 0.8 m
Overall Length 2.5 m
Weight – ANSI/CSA Standard 1855 kg
Weight – CE/AUS Standard 2000 kg

Options

  • Air line to platform
  • Power socket to platform
  • Platform work light
  • Overload sensor
  • Horn
  • Anti-collision system
  • Top limit protection auto-stop device
  • Motion Alarm
