AMP40 Aerial Work Platform Specificationsamp
| Specification | Value |
|---|---|
| Max Working Height | 14 m |
| Lifting Capacity | 120 kg |
| Overall Width | 0.78 m |
| Overall Length | 1.46 m |
| Weight – AC model | 548 kg |
| Weight – DC model | 595 kg |

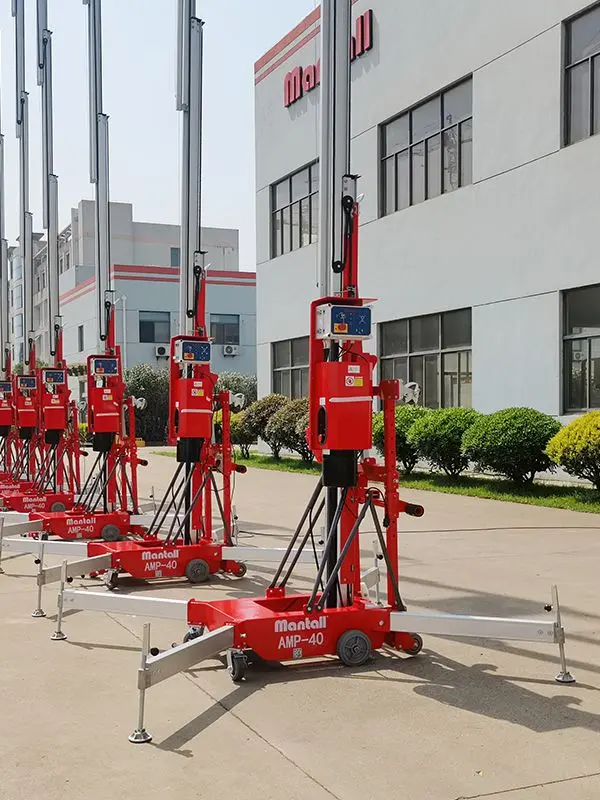

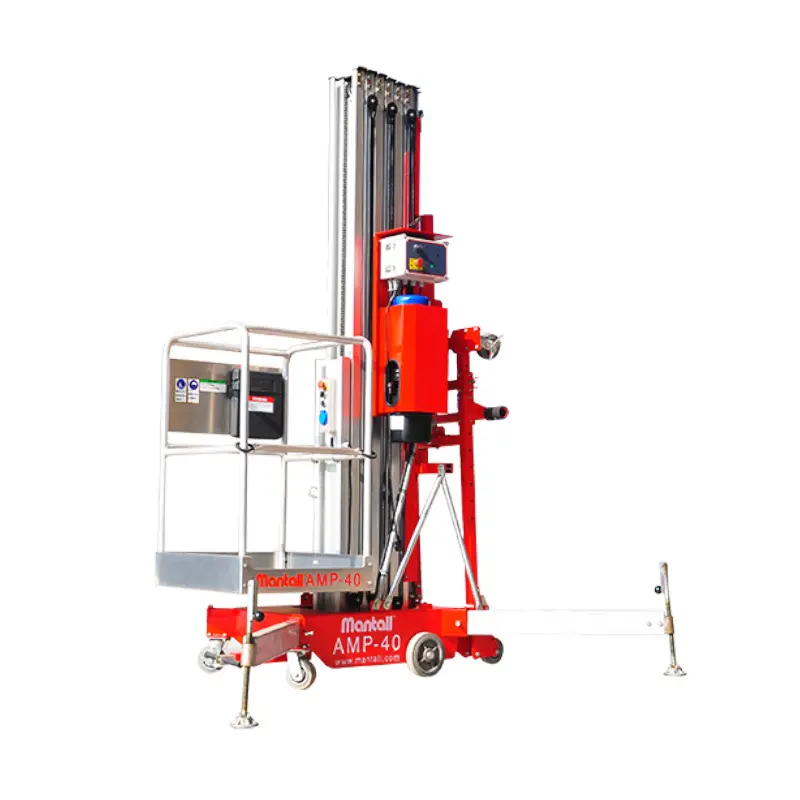

AMP40 Aerial Work Platform
Vertical Mast LiftsMantallĀ® AMP40 aerial work platform has a maximum working height of 14 meters. The lifting mast and platform basket are made of aluminum alloy. The base is equipped with four stabilizers and four casters. AMP40 is equipped with a tilting device, and an operator can put AMP40 in a tilted state. At this time, the total height of the machine is 1.98 meters, and it can be moved through a standard doorway. AMP40 aerial work platform has two power sources to choose from, namely DC type and AC type.
Standard Features
- Aluminum platform basket
- Polyurethane non-mark tires
- Leverage Ro-Ro device
- Lifting ears
- Two controls: platform control and ground control
- Lower beeper warning
- Tilt Device (only for AMP40)
- Emergency lower down
- Outrigger storage frame
- Maintenance-free battery
AMP40 Aerial Work Platform Specifications
Options
- Door type standard/narrow/wide platform
- Fiber glass platform
- Goods collection platform
- Narrow/rough ground chassis
- DC power
- Tool box
- Platform positioning laser light
- Fluorescent tubes box
- Working flashing beacon
- Top limit protection auto-stop device
- Equipment protection cover
