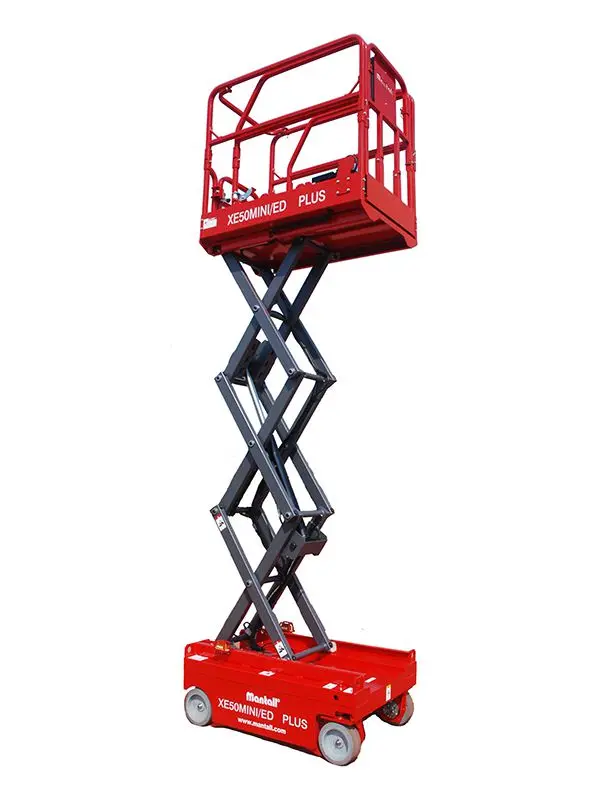

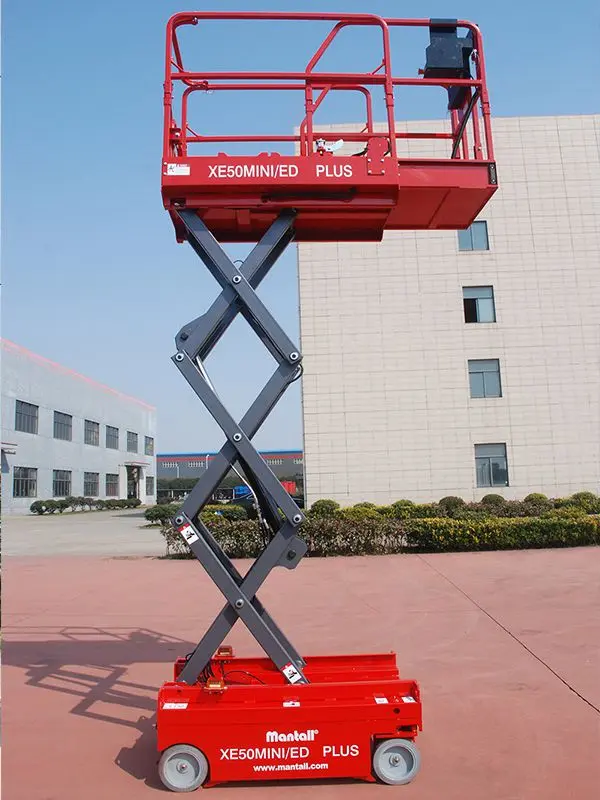

XE50 Mini ED Scissor Lift

Mantall® XE50 Mini ED Scissor Lift is battery powered, has a working height of 5.4 meters and a load capacity of 240 kg. It is an electric drive (ED) scissor lift. XE50 is suitable for high-altitude operations in narrow indoor and outdoor workplaces. XE50 Mini ED Scissor Lift has the features of light weight, good maneuverability, zero emission, no noise, and self-propelled.

Standard Features

  • Proportional Controls
  • Self-lock gate on platform
  • Extended Platform
  • Drivable at full height
  • Non-marking Tires
  • 4 x 2WD
  • Automatic brake system
  • Emergency lowering system
  • Emergency stop button
  • Explosion-proof of the tubing
  • Diagnosis system
  • Tilt sensor with Alarm
  • Horn
  • Flash light
  • Hour meter
  • Safety Brackets
  • Forklift Pockets

XE50 Mini ED Scissor Lift Specifications

Specification Value
Max Working Height 5.4 m
Lifting Capacity 240 kg
Overall Width 0.76 m
Overall Length 1.49 m
Weight 760 kg


  • Overload sensor
  • AC power to platform
