XDW180RT Rough Terrain Scissor Lift Specificationsxdw
| Specification | Value |
|---|---|
| Max Working Height | 18 m |
| Lifting Capacity | 680 kg |
| Overall Width | 2.3 m |
| Overall Length with outriggers | 4.88 m |
| Weight | 8810 kg |

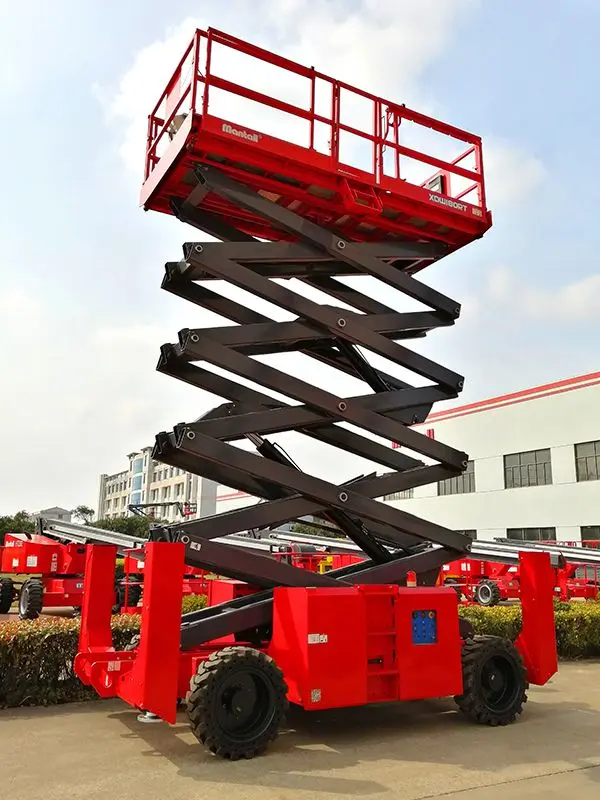

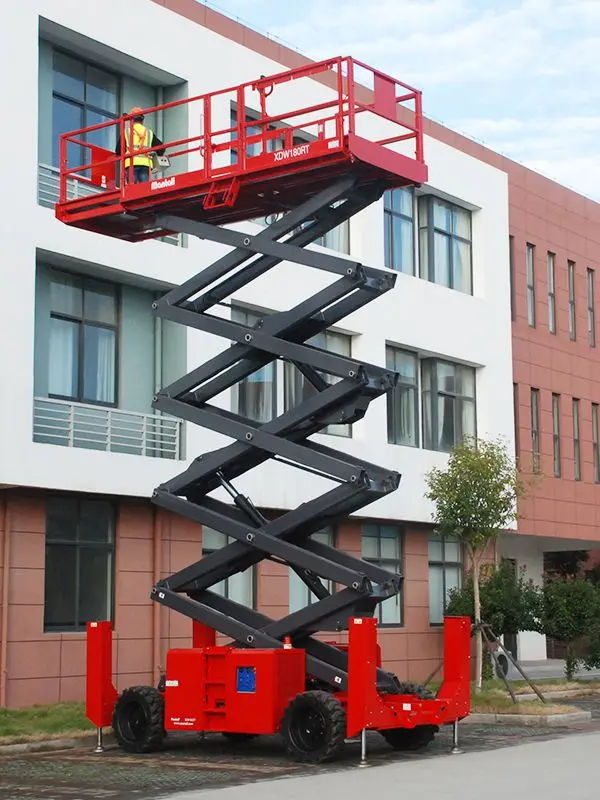

XDW180RT Rough Terrain Scissor Lift
Scissor LiftsMantall® XDW180RT Rough Terrain Scissor Lift has a maximum working height of 18 meters. It is equipped with a diesel engine, a 6.3-meter-long double extension platform. XDW180RT can carry up to 3 workers with a maximum load of 680 kg. With four-wheel drive and 40 percent gradeability, it enables workers to get a variety of jobs done on rough terrain. XDW180RT rough terrain scissor lift is capable of safely lowering to the ground without power source.
Standard Features
- Foldable guardrail
- Diagnostic system
- AC wiring to platform
- 4 wheel drive
- Tilt level sensor with an audible alarm
- Lowering alarm
- Horn
- Hour meter
- Emergency pump
- Proportional controls
- Solid rough tire
- Safety brackets
- Dual flashing beacon
XDW180RT Rough Terrain Scissor Lift Specifications
Options
- Automatic leveling hydraulic outriggers (XDW120RT XDW150RT)
- Airline to platform
- DC power supply
- Motor cold starting components
- Overload sensor
- Moveable alarm components
- Non-mark rough tires
