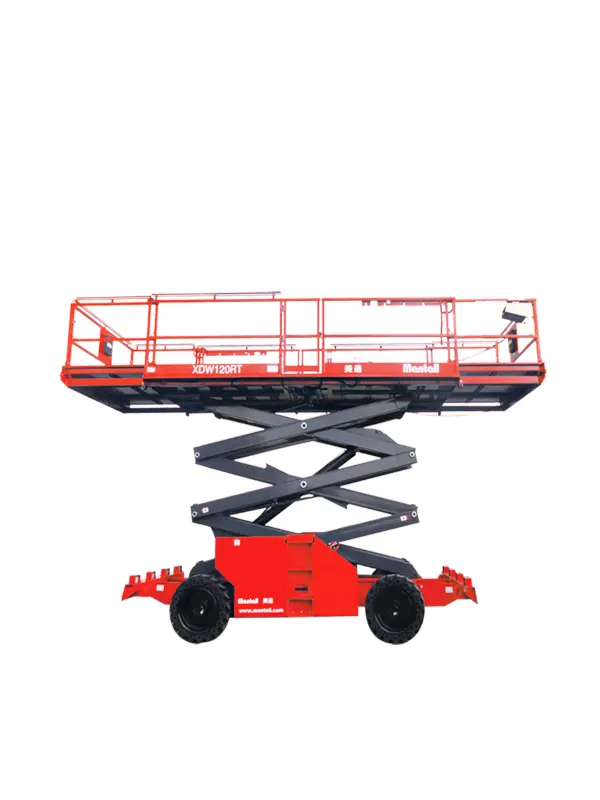

XDW120RT Rough Terrain Scissor Lift

Mantall® XDW120RT Rough Terrain Scissor Lift has a maximum working height of 12 meters. It is equipped with a diesel engine, a 6.3-meter-long double extension platform. XDW120RT can carry up to 3 workers with a maximum load of 1000 kg. With four-wheel drive and 45 percent gradeability, it enables workers to get a variety of jobs done on rough terrain. XDW120RT rough terrain scissor lift is capable of safely lowering to the ground without power source.

Standard Features

  • Foldable guardrail
  • Diagnostic system
  • AC wiring to platform
  • 4 wheel drive
  • Tilt level sensor with an audible alarm
  • Lowering alarm
  • Horn
  • Hour meter
  • Emergency pump
  • Proportional controls
  • Solid rough tire
  • Safety brackets
  • Dual flashing beacon

XDW120RT Rough Terrain Scissor Lift Specifications
xdw

Specification Value
Max Working Height 12 m
Lifting Capacity 1000 kg
Overall Width 2.3 m
Overall Length with outriggers 4.88 m
Weight 6282 kg

Options

  • Automatic leveling hydraulic outriggers (XDW120RT XDW150RT)
  • Airline to platform
  • DC power supply
  • Motor cold starting components
  • Overload sensor
  • Moveable alarm components
  • Non-mark rough tires
