IMP120J Vertical Mast Lift

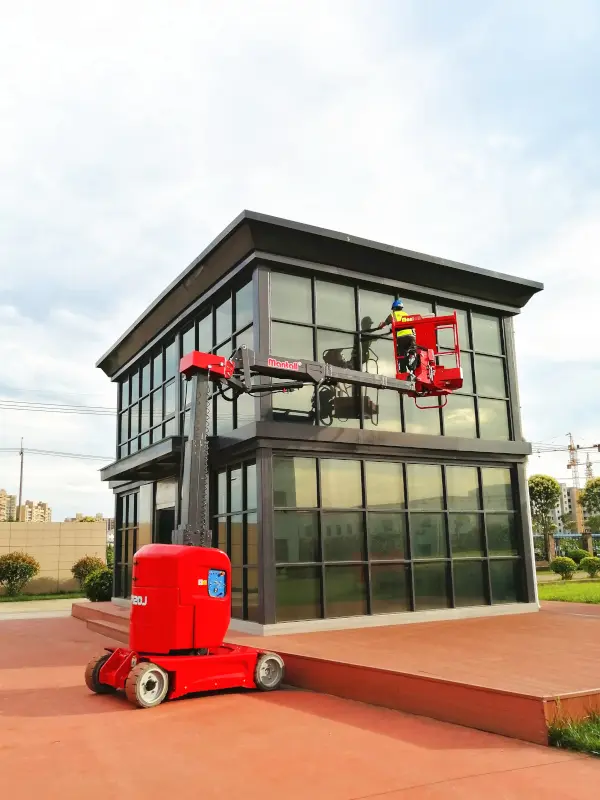

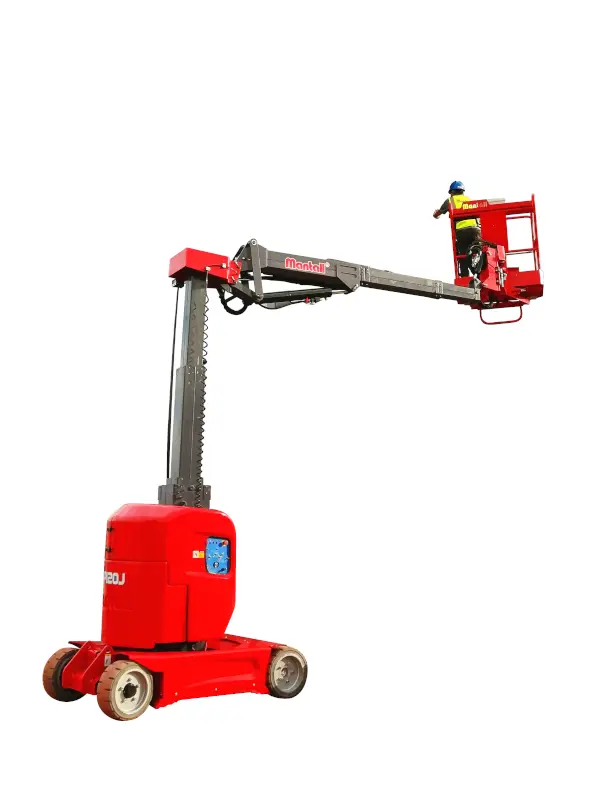

Mantall® IMP120J vertical mast lift has a maximum working height of 12m, a maximum load of 200kg, and a maximum working radius of 6m. The turntable rotates 345° discontinuously, the jib swings up and down 135°, and the platform rotates 90° horizontally. IMP120J features an AC drive motor to minimize maintenance costs. It has a 30% gradeability and a 6km/h drive speed. IMP120J adopts electric automatic leveling system, tilting, and overload safety protection system, which enable users to complete high-altitude jobs safely. IMP120J vertical mast lift can carry out multiple operations at the same time, significantly improving work efficiency.

Standard Features

  • 345 degree discontinuous rotation
  • Jib swing:-60 degree/+75 degree
  • Platform swing: left 45 degree/right 45 degree
  • Non-marking rubber tires (size 457*178*308)
  • 2.5 degree tilt alarm
  • Lifting ears (4 pieces)
  • Hour meter
  • Proportional control
  • Horn
  • Fault diagnosis system
  • Automatic brake system
  • Explosion-proof of the oil tube
  • Manual brake release
  • Overload sensor
  • Platform foot switch
  • Emergency lowering down system

IMP120J Vertical Mast Lift Specifications
imp120j

Specification Value
Max Working Height 12 m
Max Working Outreach 6 m
Lifting Capacity 200 kg
Overall Width 1.2 m
Overall Length 4.03 m
Weight 4770 kg

Options

  • Handheld fault diagnostics
  • Air line to the platform
  • Platform working light
  • AC power to the platform
  • Tool bracket
  • All motion alarm
  • Top limit protection auto-stop device
  • Maintenance free battery
  • Fiberglass platform
