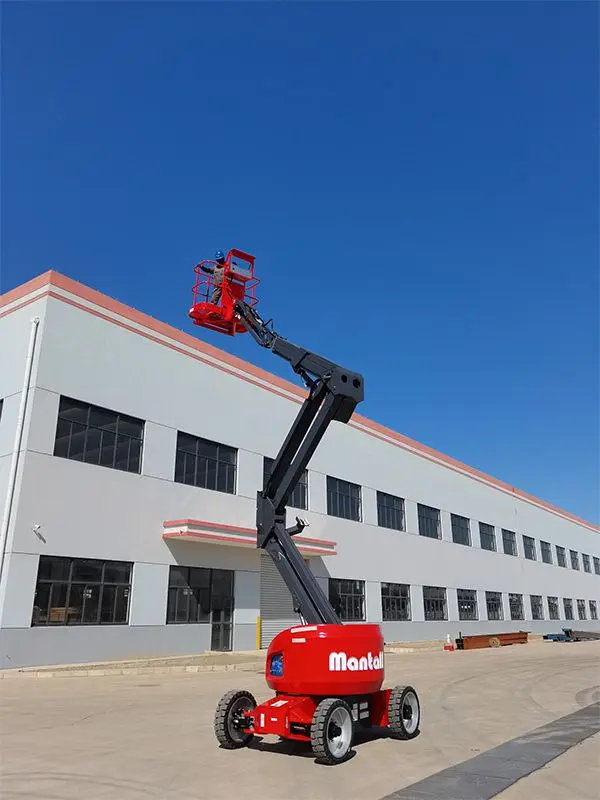

HZ120 Articulated Boom Lift

Mantall® HZ120 articulated boom lift can reach a working height of 12m. Equipped with 360-degree rotating turntable, electro-hydraulic proportional control, and CAN intelligent control system, it is easier to maintain and upgrade. HZ120 also allows the operator to perform multiple movements simultaneously, enabling multi-directional precise positioning and lifting operations, enabling workers to access hard-to-reach places and avoid obstacles. HZ120 articulated boom lift are zero emission and suitable for indoor applications.

Standard Features

  • Self-leveling platform
  • Hydraulic rotation platform
  • Hall effect fully proportional controls
  • Driving confirm
  • AC wiring to platform
  • Horn
  • Hour meter
  • Tilt alarm
  • Positive traction drive
  • Dual speed motor
  • Emergency pump
  • CAN intelligent control
  • Overload sensor

HZ120 Articulated Boom Lift Specifications
hz120-140j

Specification Value
Max Working Height 12 m
Max Working Outreach 6 m
Max Up and Over Clearance 4.2 m
Lifting Capacity 200 kg
Overall Width 1.5 m
Overall Length 4.2 m
Total weight 4.0 t

Options

  • Platform swing gate
  • Platform alternate leverage
  • Airline to platform
  • Hydraulic oil cooler
  • Hostile environment packages
  • Anti-crash air packages
  • Tool tray
  • Alarm packages
  • Platform work lights
