CMP18-RB Aerial Work Platform Specificationscmp-s
| Specification | Value |
|---|---|
| Max Working Height | 18 m |
| Lifting Capacity | 150 kg |
| Overall Width | 0.85 m |
| Overall Length | 2 m |
| Weight – AC model | 1540 kg |
| Weight – DC model | 1560 kg |

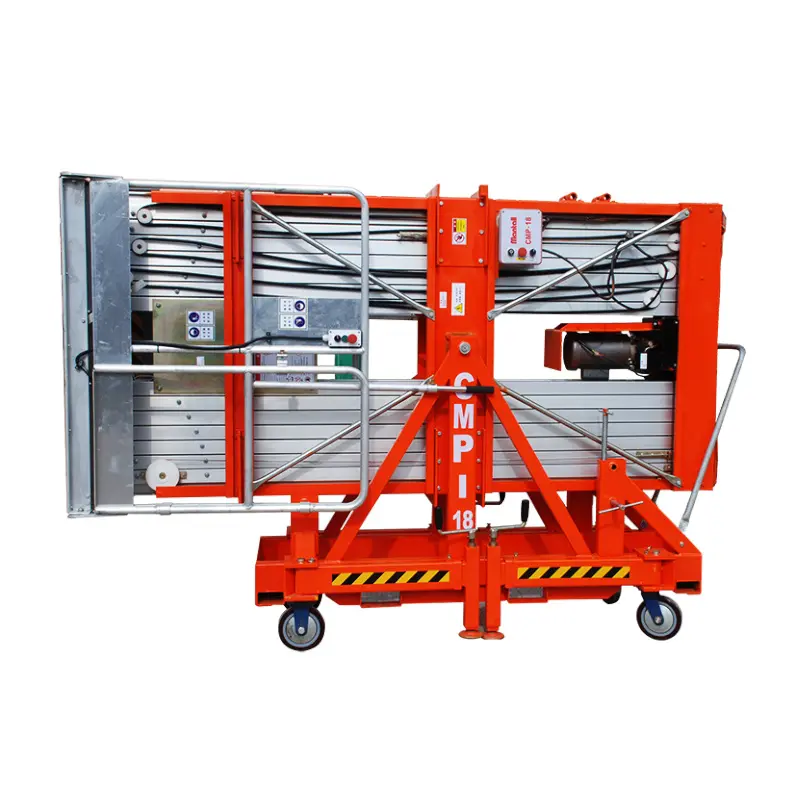

CMP18-RB Aerial Work Platform
Vertical Mast LiftsMantallĀ® CMP18-RB aerial work platform has a maximum working height of 18 metres. With its high strength aluminium double mast and heavy duty lifting chains, its sturdy steel chassis ensures safe lifting and lowering with a maximum load capacity of 150kg. The large platform is made of aluminium alloy, providing workers with plenty of space to perform a variety of work at height. CMP18-RB aerial work platform is equipped with a dual control system that allows the operator to control the platform up and down while standing on the platform or on the ground.
Standard Features
- Aluminum Platform Basket
- Polyurethane Non-mark tires
- Forklift Pockets
- Foldable Inclined Ladder
- Two controls: Platform Control and Ground Control
- Lower Beeper warning
- Rotation Platform (CMP18 only)
- Emergency Lower Down
- Outrigger Storage Frame
- Maintenance-free battery
CMP18-RB Aerial Work Platform Specifications
Options
- Door Type wide Platform
- Narrow/Rough Ground Chassis
- Wide Chassis
- DC Power
- Tool Box
- Platform Positioning Laser light
- Fluorescent Tubes Box
- Working Flashing Beacon
- Top Limit Protection Auto-stop device
- Auxiliary drive wheel
- Equipment Protection cover
