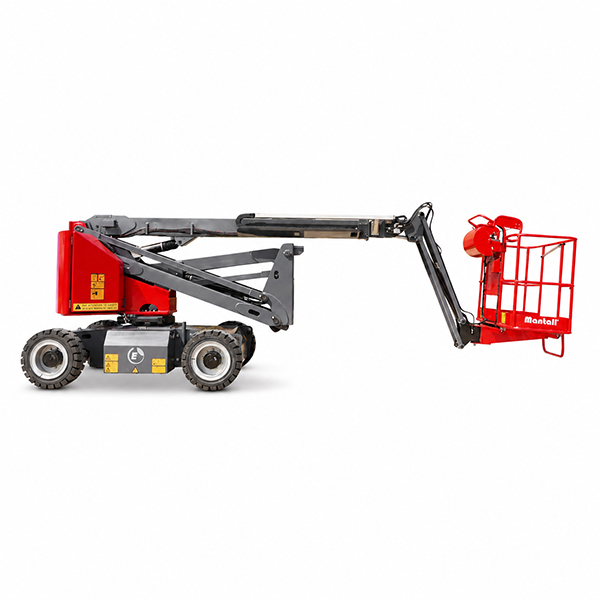

Mantallo® HZ160JE articulated boom lift has a maximum working height of 16.5 meters, a 360-degree turntable rotation, a working platform that can move up and down, left and right, non-marking tires and power batteries. The zero emission and low noise characteristics make it suitable for indoor applications. HZ160JE is equipped with Hall effect proportional joystick and CAN intelligent control system, which makes maintenance and upgrade easier. HZ160JE articulated boom lift can perform multi-directional precise positioning and lifting operations, enabling workers to work in a limited working area and avoid obstacles.
| Specifiche | Valore |
|---|---|
| Altezza massima di lavoro | 16.5 m |
| Massima distanza di lavoro | 8.04 m |
| Spazio massimo di salita e discesa | 8.07 m |
| Capacità di sollevamento | 230 kg |
| Larghezza complessiva | 1.80 m |
| Lunghezza complessiva | 5.98 m |
| Peso totale | 7482 kg |
